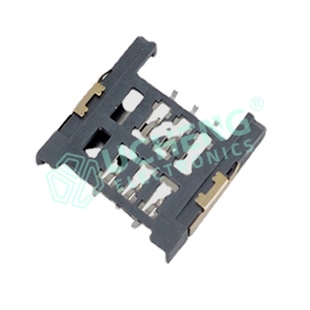

6P Plug-in 1.8H Inner Solder Standard SIM Socket with Bridge Stop
Number
SIM-163Y
| Rated Load： | DC 5V 0.5A |
| Contact Resistance： | 100mΩ MAX |
| Insulation Resistance： | AC 250V ≥500MΩ |
| Resistance to Soldering Temperature： | 250±5°5s |
| Service Life： | 1,000 cycles |
| Use temperature： | -25 ℃ to 85 ℃ |
| Product Thickness： | 1.8mm |
Description
Precautions
Item | Requirement |

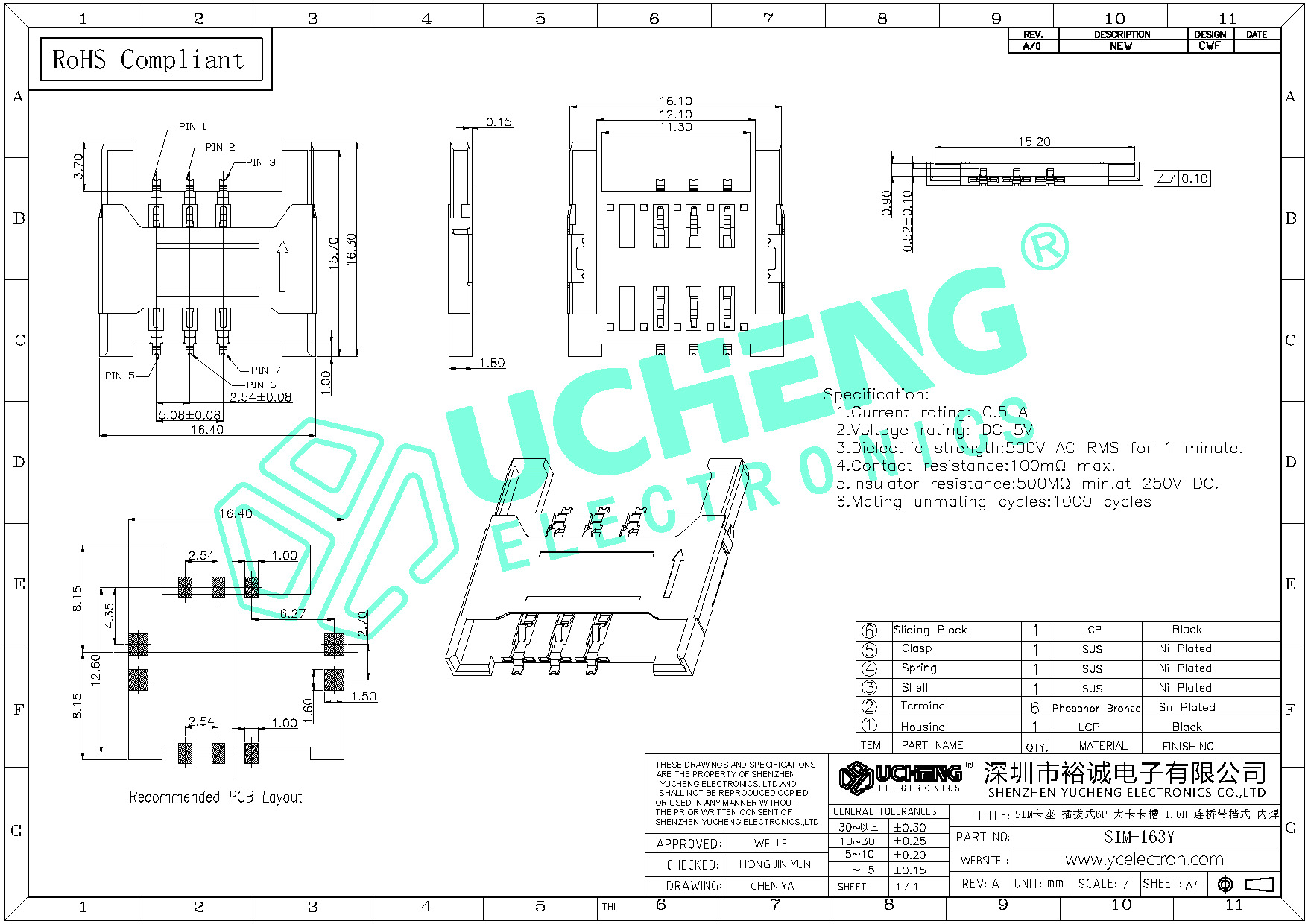

PRODUCT DIMENSION | These connectors shall have the dimensions as shown in customer drawing。 |
PCB/PANEL LAYOUT | The recommended PCB layout is shown in customer drawing。 |
MATERIAL | The harmful material can follow the requirement of RoHS. |
Mechanical and electrical characteristics
| The connector shall have the mechanical and electrical performance as described in table I： |
PACKAGING | This product adopts tray or Reel or bag package |
TRANSPORTATION | Any vehicle can be adopted for the transportation, but moisture-proof and no mechanical damage. |
OPERATING TEMPERATURE | Operating Temperature Range: -25℃~+80℃. |
STORAGE | Temperature: -25℃~+85℃，Relative humidity: ≤80%，Not to storage in corrosive environments A re-qualification test shall be conducted immediately while the storage duration exceed 6 months. |
NOTE | Due to the possibility of mold repair and product optimization, we kindly request the customer to confirm and verify the sample or conduct a small-batch trial production first. Only after confirmation and verification can mass production commence. |
