USB Connector

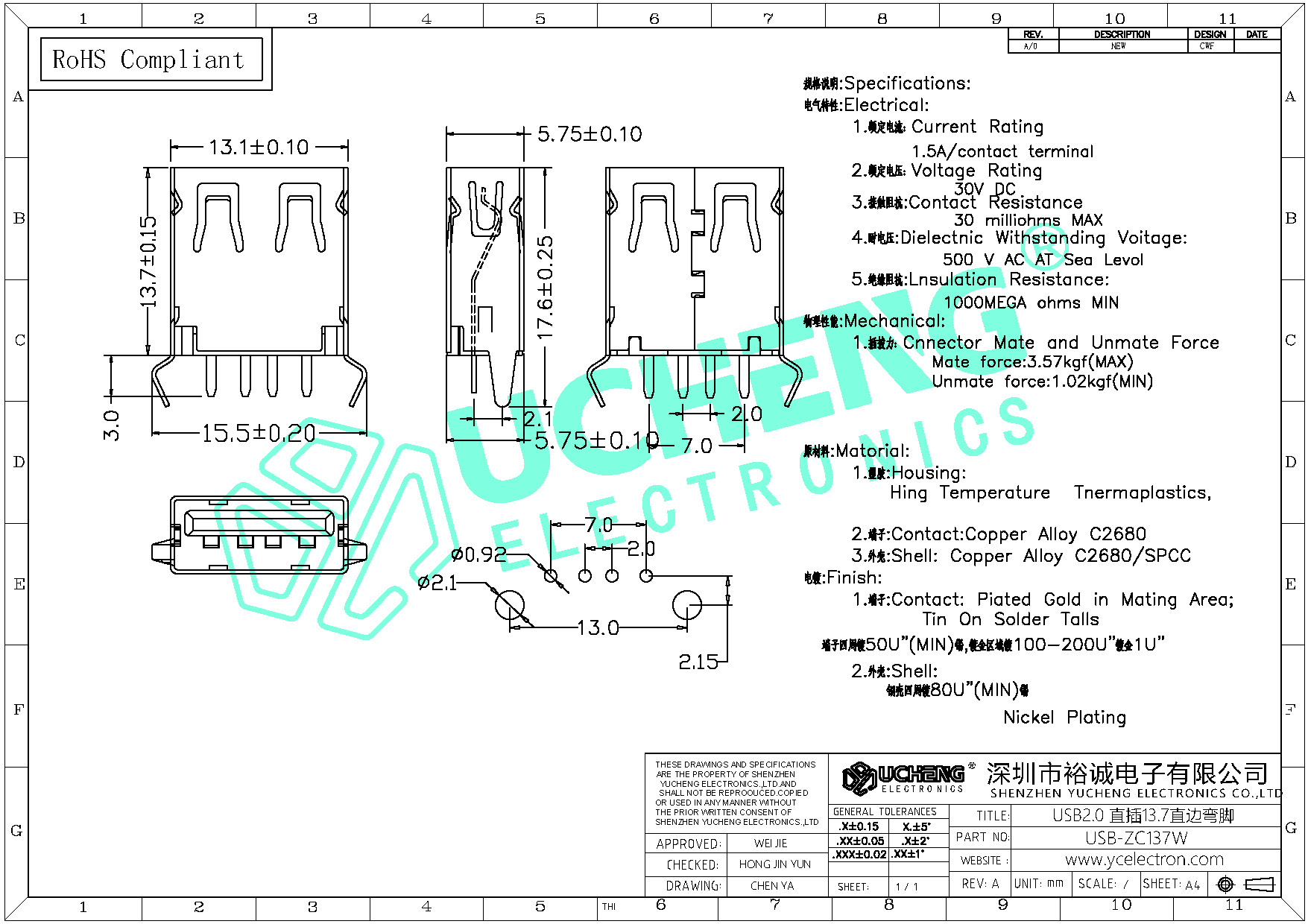

USB2.0 Vertical 13.7 Straight Edge Bent Pin
Number
USB-ZC137W
| Rated Load： | 500V AC 1.5A |
| Contact Resistance： | ≤30mΩ |
| Insulation Resistance： | AC 500V ≥1000MΩ |
| Resistance to Soldering Temperature： | 250±5°5s |
| Service Life： | 10,000 cycles |
| Use temperature： | -30 ℃ to 80 ℃ |
| Operating Travel： | 3.57kgf Max |
Description
Precautions
Item | Requirement |
PRODUCT DIMENSION | These connectors shall have the dimensions as shown in customer drawing。 |
PCB/PANEL LAYOUT | The recommended PCB layout is shown in customer drawing。 |
MATERIAL | The harmful material can follow the requirement of RoHS. |
Mechanical and electrical characteristics
| The connector shall have the mechanical and electrical performance as described in table I： |
PACKAGING | This product adopts tray or Reel or bag package |
TRANSPORTATION | Any vehicle can be adopted for the transportation, but moisture-proof and no mechanical damage. |
OPERATING TEMPERATURE | Operating Temperature Range: -25℃~+80℃. |
STORAGE | Temperature: -25℃~+85℃，Relative humidity: ≤80%，Not to storage in corrosive environments A re-qualification test shall be conducted immediately while the storage duration exceed 6 months. |
NOTE | Due to the possibility of mold repair and product optimization, we kindly request the customer to confirm and verify the sample or conduct a small-batch trial production first. Only after confirmation and verification can mass production commence. |
