额定电流：	1.0Amp
绝缘阻抗：	1000MΩMin
耐电压：	300VAC
接触电阻：	20mΩMax
温度范围：	-40ºC to +105ºC
操作力：	1.5N Min. per pin.

Item项目	Requirement(规格/要求)
PRODUCT DIMENSION （产品尺寸）	These connectors shall have the dimensions as shown in customer drawing。本产品的相关尺寸参见客户图面。
PCB/PANEL LAYOUT （印刷电路板布局）	The recommended PCB layout is shown in customer drawing。本产品适用的PCB layout参见客户图面
MATERIAL（材料）	The harmful material can follow the requirement of RoHS. 本产品使用的材料符合 RoHS 指令要求。
Mechanical and electrical characteristics （机械及电气特性）	The connector shall have the mechanical and electrical performance as described in table I：本产品的机械及电气特性见附表。
PACKAGING （包装）	This product adopts tray or Reel or bag package 本产品采用tray 盘或REEL包装，
TRANSPORTATION （运输）	Any vehicle can be adopted for the transportation, but moisture-proof and no mechanical damage. 可采用任何运输工具运输，勿淋湿及机械性损伤。
OPERATING TEMPERATURE （工作温度）	Operating Temperature Range: -40℃~+105℃. 工作温度范围：-40℃~+105℃.
STORAGE （存贮）	Temperature: -25℃~+85℃，Relative humidity: ≤80%，Not to storage in corrosive environments A re-qualification test shall be conducted immediately while the storage duration exceed 6 months. 温度：-25℃~+85℃；相对湿度：≤80%；勿贮存于腐蚀环境内。贮存期超过6个月后需重新进行品质确认。
NOTE(注意点)	Due to the possibility of mold repair and product optimization, we kindly request the customer to confirm and verify the sample or conduct a small-batch trial production first. Only after confirmation and verification can mass production commence. 因存在修模、产品优化的可能性，烦请客户先样品进行确认核对或小批量试产，确认无误后才能进行批量生产。

产品展示

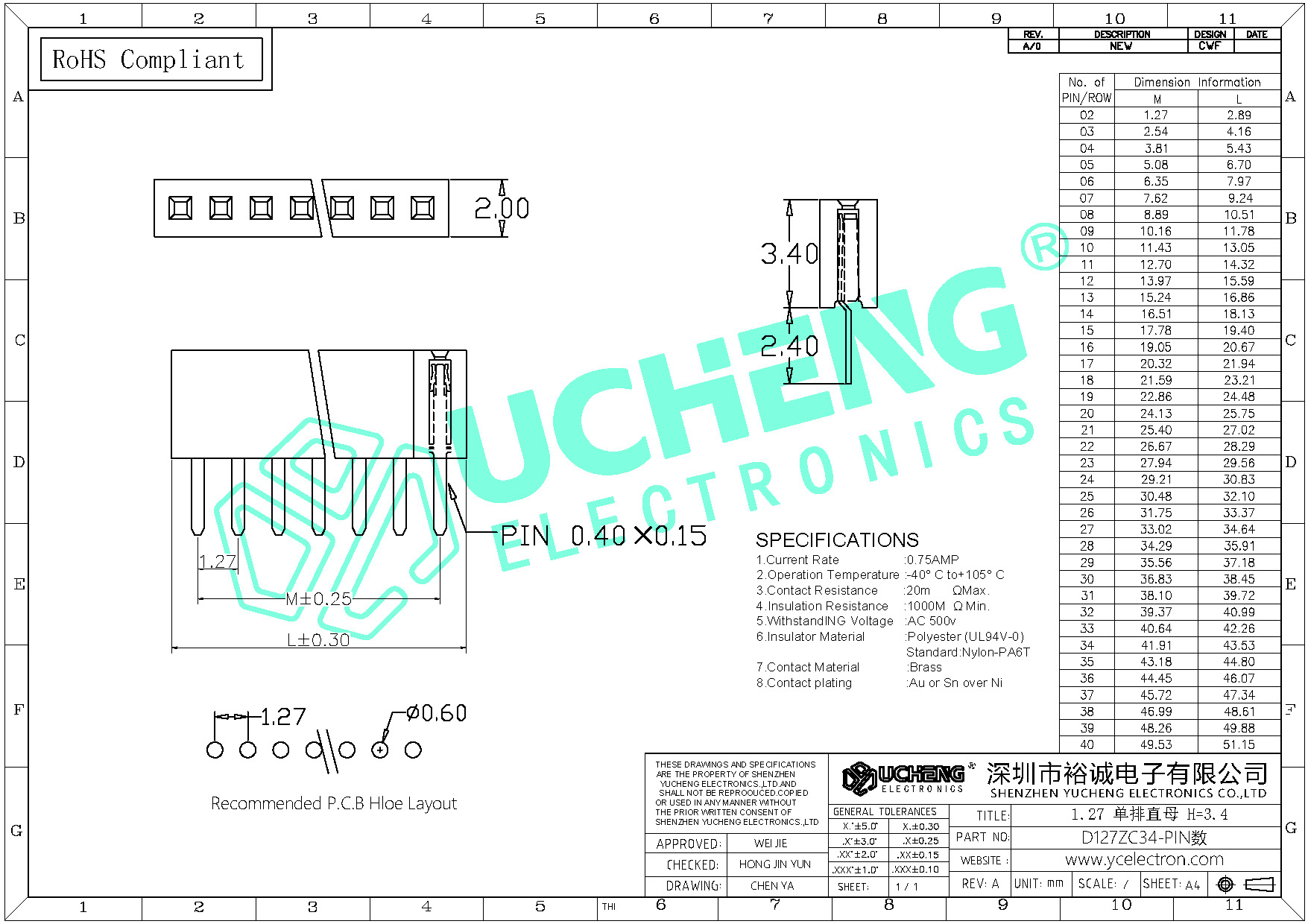

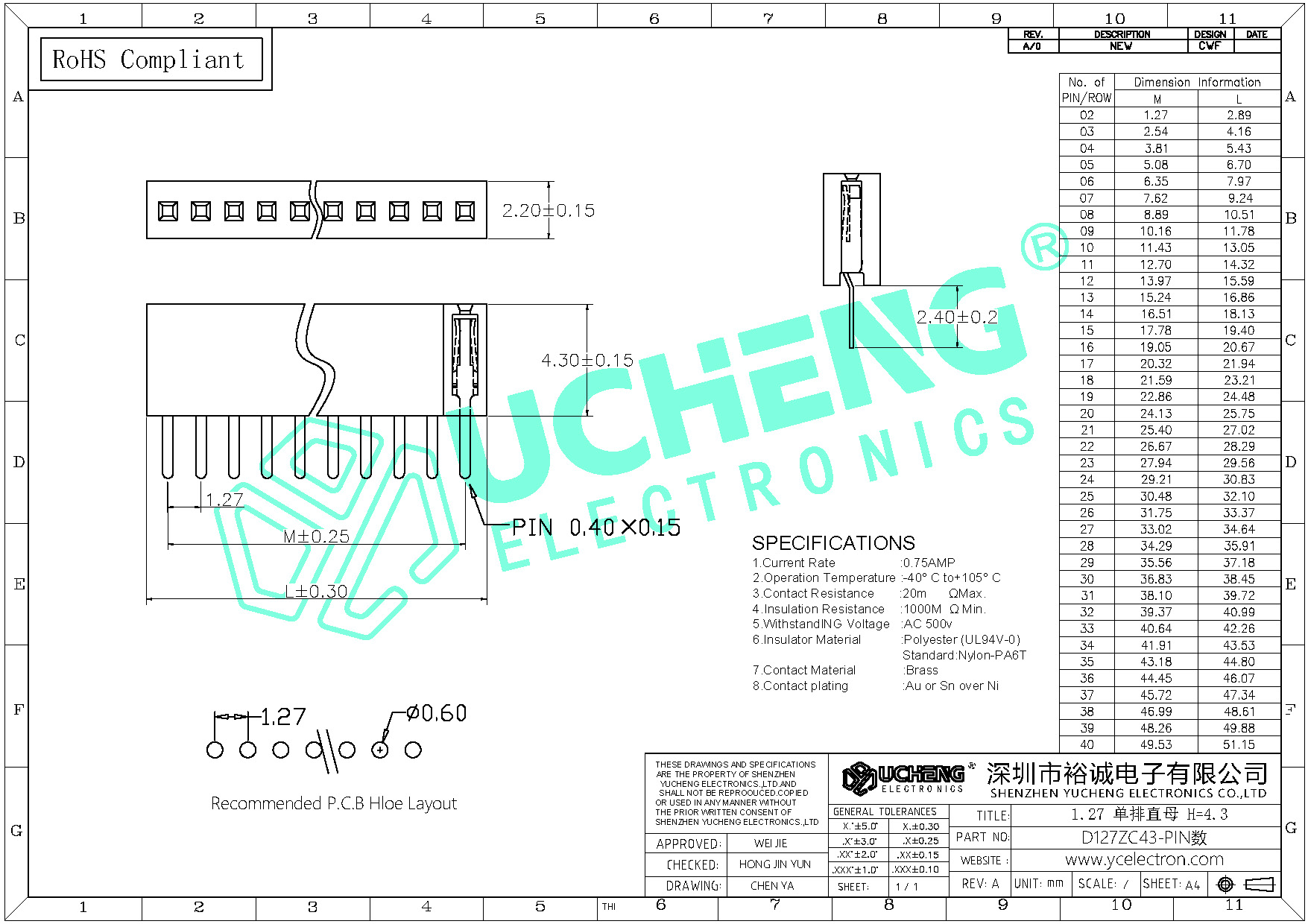

1.27 单排直母 H=3.4/4.3
