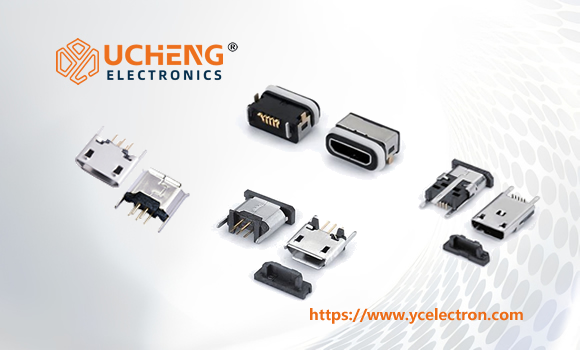

Compact, Cost-Effective, Reliable Micro USB
1. Compactness (Core Structural Feature)
Micro USB features a miniature form factor with dimensions much smaller than Mini USB. Horizontal / vertical SMD versions have low overall height, occupying minimal space on PCBs and inside devices, making them suitable for compact internal structures of small portable gadgets.
Example: Horizontal SMD 5Pin Micro USB female socket (0.8mm sink type), widely applied in smart bracelets and Bluetooth earbud cases.Advantages:
Much smaller footprint than Mini USB and DC round jacks; ultra-thin horizontal and sink-type variants deliver extremely low height.
Takes up little PCB and internal device space, ideal for slim portable products including earbud compartments, smart bracelets, dashcams and small home appliances.
Standardized structural dimensions eliminate the need for large reserved space in mechanical design, facilitating miniaturization and lightweight development of end products.
2. Cost-Effectiveness (Supply Chain & Cost Advantage)
Having been launched for years, it boasts a mature industrial chain, universal molds and sufficient production capacity with low unit material cost. As a universal standard without customization requirements, stock is readily available to control mass purchasing costs and significantly reduce overall BOM expenses of finished goods.
Example: Standard through-hole 5Pin Micro USB female socket, the universal standard configuration for power banks and entry-level digital devices.Advantages:
Years of widespread adoption create a mature industrial chain; universal standard molds remove custom charges to cut component unit prices and lower total BOM cost.
Abundant stock ensures stable lead times for bulk orders with no expensive mold opening or sampling fees.
Massive stock of matching cables and chargers exists in the market; distributors avoid stocking exclusive accessories to cut channel inventory costs.
High production yield and low after-sales repair rates greatly reduce losses from returns, labor maintenance and material waste, delivering lower long-term comprehensive costs.
3. Reliability (Electrical & Mechanical Durability)
Contacts are normally gold-plated to maintain stable conduction during plugging and unplugging. The snap-fit metal housing provides firm locking to prevent loosening after repeated insertions and extractions. The unified standard 5Pin pin definition delivers strong compatibility for charging and data transmission with low failure rates.
Example: Four-pin reinforced SMD Micro USB, specially used for devices with frequent plugging such as dashcams and portable speakers.Advantages:
Unified standard 5Pin pin definition ensures high compatibility for charging and data transfer with rare connection recognition failures.
Premium versions adopt thickened gold-plated contacts for oxidation resistance and consistent contact resistance, eliminating intermittent charging issues during repeated use.
Firm snap-fit metal housing; four reinforced mounting lugs offer tensile resistance against detachment, preventing looseness under long-term frequent plugging.
High-temperature resistant LCP plastic insulator resists deformation during SMT reflow soldering, minimizing short circuits and cold solder joints in mass production to lower overall product failure rates.
Yucheng – Striving for Perfection, Creating Greater Value
